1. The Challenge of Scale: Painting Oversized Vehicles and Heavy Assets

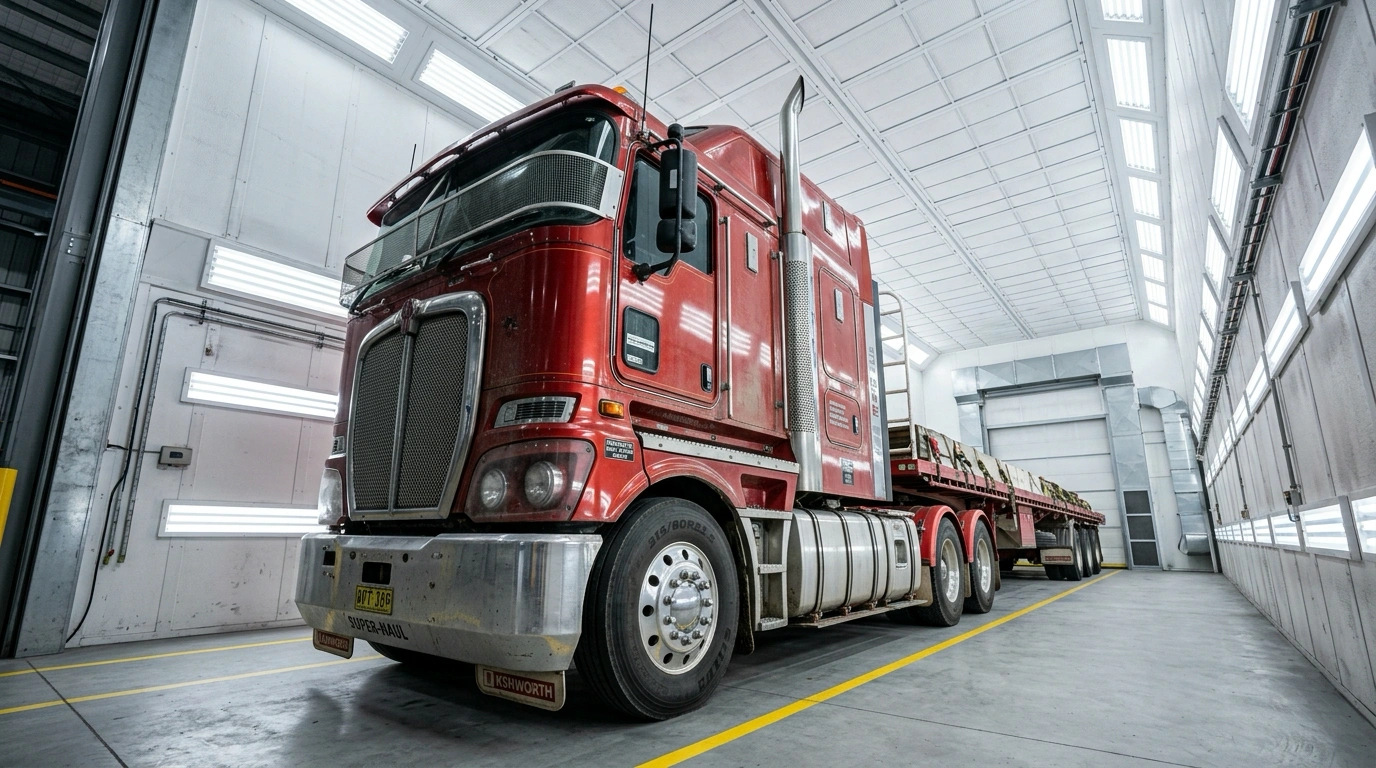

The primary challenge in heavy-duty refinishing is the sheer physical scale. A standard car spray booth typically measures 7 meters in length, whereas a commercial bus or a semi-trailer can exceed 12 to 18 meters. When painting assets of this size, air dynamics become significantly more complex. In a small space, maintaining laminar airflow—where air moves in a uniform, predictable path—is relatively straightforward. In an oversized booth, the risk of “dead zones” increases. These are areas where air stagnates, causing overspray to settle back onto the wet finish, leading to a “sandy” texture or uneven gloss.
Furthermore, the thermal mass of a heavy-duty asset is substantially higher. A heavy-duty truck chassis or a bulldozer blade acts as a massive heat sink. Achieving a consistent metal temperature for paint curing requires a sophisticated heating system that can compensate for this thermal inertia. Without precise control, the surface may cure while the substrate remains cold, potentially leading to adhesion failure or long-term corrosion issues.
2. Engineering for Durability: Reinforced Structures and High-Volume Centrifugal Fans
Industrial operations demand equipment that can withstand 24/7 cycles. Shandong Yingma’s heavy-duty booths are engineered with reinforced structural integrity. Unlike light-duty booths that use standard EPS panels, our commercial solutions utilize high-density Rock Wool sandwich panels with a thickness of 75mm to 100mm, providing superior insulation and fire resistance. The floor structure is often reinforced with heavy-duty galvanized steel grates capable of supporting axle loads of several tons, essential for heavy machinery.
The “lungs” of the system are the high-volume centrifugal fans. For a booth that may be 15 meters long and 5 meters high, the volume of air to be moved is immense. We employ dual or quad centrifugal fan configurations that deliver airflows exceeding 40,000 to 60,000 m³/h. These fans are designed to overcome the static pressure caused by multi-stage filtration systems (Pre-filters, Ceiling filters, and Floor filters). By maintaining a slight positive pressure, we ensure that no external dust enters the booth, while effectively extracting all VOCs and overspray particles from the operator’s breathing zone.
3. Operational Efficiency: Shortening Curing Cycles to Minimize Downtime
In the fleet industry, a vehicle out of service is a direct revenue loss. For a Class 8 truck, downtime can cost an operator anywhere from 1,000 per day in lost productivity. Therefore, the efficiency of the curing cycle is paramount. Shandong Yingma integrates advanced heating solutions, including high-efficiency diesel burners (such as Riello or Baltur) and optional infrared (IR) curing lamps.
Infrared technology is particularly effective for heavy machinery. Traditional convection heating warms the air, which then warms the vehicle. IR heating, however, penetrates the paint layer to heat the substrate directly, initiating the curing process from the inside out. This can reduce drying times by up to 50%, allowing a vehicle to return to the road or the job site much faster. Our intelligent control systems allow for multi-zone heating, meaning if only the front of a bus was repaired, only the corresponding heating zone is activated, significantly reducing energy consumption.
4. Customization: Designing Booths for Specific Fleet Dimensions
One size does not fit all in the world of heavy machinery. A booth designed for a fleet of transit buses will have different requirements than one used for underground mining loaders or large-scale agricultural harvesters. Shandong Yingma specializes in modular customization, ensuring that the dimensions of the booth perfectly match the fleet’s needs without wasting energy on heating unoccupied space.
Key customization factors include:
Telescopic or Retractable Options:
- For facilities with limited space, we offer retractable booths that can be folded when not in use, freeing up floor space for other maintenance activities.
Side-Draft vs. Down-Draft:
- Depending on the facility’s floor depth limitations, we can design side-draft systems that require no excavation, or full down-draft pits for the highest quality finish and operator safety.
Drive-Through Capability:
- For high-volume logistics centers, drive-through booth configurations minimize maneuvering time, allowing trucks to enter from one end and exit from the other once the cycle is complete.
Internal Lifting Systems:
- We can integrate pneumatic man-lifts within the booth, allowing painters to reach the top of a 4-meter high trailer safely and ergonomically, ensuring consistent coverage across all surfaces.
5. Environmental Stewardship: VOC Emission Control in Large-Scale Operations
Environmental regulations regarding Volatile Organic Compounds (VOCs) are becoming increasingly stringent globally. For large-scale operations, where paint consumption is high, the environmental footprint is significant. Shandong Yingma’s heavy-duty booths are designed to be “future-proof” by integrating multi-stage filtration and emission control technologies.
Our standard heavy-duty filtration suite includes:
Primary Dry Filtration:
- High-capacity fiber glass filters that capture the bulk of the overspray.
Activated Carbon Adsorption:
- For facilities located near residential areas or in jurisdictions with strict VOC limits, we integrate carbon filtration banks that adsorb solvent vapors before air is exhausted into the atmosphere.
Water-Borne Compatibility:
- As the industry shifts towards water-borne coatings, our booths can be equipped with high-velocity air-blowers (Flash-off systems) that accelerate the evaporation of water, a necessary feature for modern, eco-friendly paint systems.
By optimizing the airflow and filtration efficiency, our systems not only protect the environment but also protect the health of the technicians. Maintaining a consistent air speed of 0.25 m/s to 0.35 m/s across the cross-section of the booth ensures that harmful vapors are moved away from the operator instantly.
6. Appendix A: Technical Specifications for Standard Heavy-Duty Models
To assist fleet managers in their planning process, the following table outlines the technical specifications for our most popular heavy-duty configurations. Note that all dimensions and power ratings can be customized to specific requirements.
| Feature | Large Truck / Bus Model | Extra-Long Trailer Model | Heavy Machinery / Mining |
| External Dimensions | 12.1m x 5.5m x 5.0m | 18.0m x 6.0m x 5.5m | 15.0m x 7.0m x 6.5m |
| Airflow Volume | 42,000 m³/h | 60,000 m³/h | 55,000 m³/h |
| Heat Capacity | 200,000 kcal/h | 300,000 kcal/h | 400,000 kcal/h |
| Panel Type | 75mm Rock Wool | 100mm Rock Wool | 100mm Rock Wool |
| Illumination | > 800 Lux | > 1000 Lux | > 1000 Lux |
| Fan Configuration | 2x 7.5kW Centrifugal | 4x 7.5kW Centrifugal | 2x 15kW Centrifugal |
7. Appendix B: ROI Analysis: The Cost of Downtime vs. Investment
The decision to upgrade to a high-throughput spray booth should be driven by data. Consider a fleet of 50 heavy trucks. If each truck requires a major paint refurbishment once every three years, the facility handles approximately 17 trucks per year.
Current Scenario:
- A standard booth takes 4 days for a full cycle (prep, paint, cure, cool). Total downtime per year = 68 days.
Yingma High-Throughput Scenario:
- Our infrared and high-airflow systems reduce the cycle to 2 days. Total downtime per year = 34 days.
The Gain:
- 34 days of additional vehicle availability. At an average revenue of
27,200 in annual revenue** just by shortening the painting cycle.
Energy Savings:
- By using multi-zone heating and variable frequency drives (VFDs) on our fans, operators typically see a 15-20% reduction in energy costs per cycle, further accelerating the payback period, which is often less than 24 months.
8. Conclusion & CTA
Maximizing throughput in heavy-duty painting is not just about having a larger room; it is about precision engineering, thermal management, and smart customization. Shandong Yingma Machinery Equipment Co., Ltd. provides the robust infrastructure necessary for fleet managers to reduce downtime and improve the lifecycle of their assets. Investing in a high-quality heavy-duty spray booth is an investment in the long-term operational efficiency of your business.
Ready to optimize your fleet maintenance? Contact Shandong Yingma today for a custom consultation and a detailed ROI analysis of our heavy-duty spray booth solutions. Visit our website or contact our sales engineering team to start designing your high-throughput facility.
